These tools are a part of a 2 tool system and require the use of a sealer.

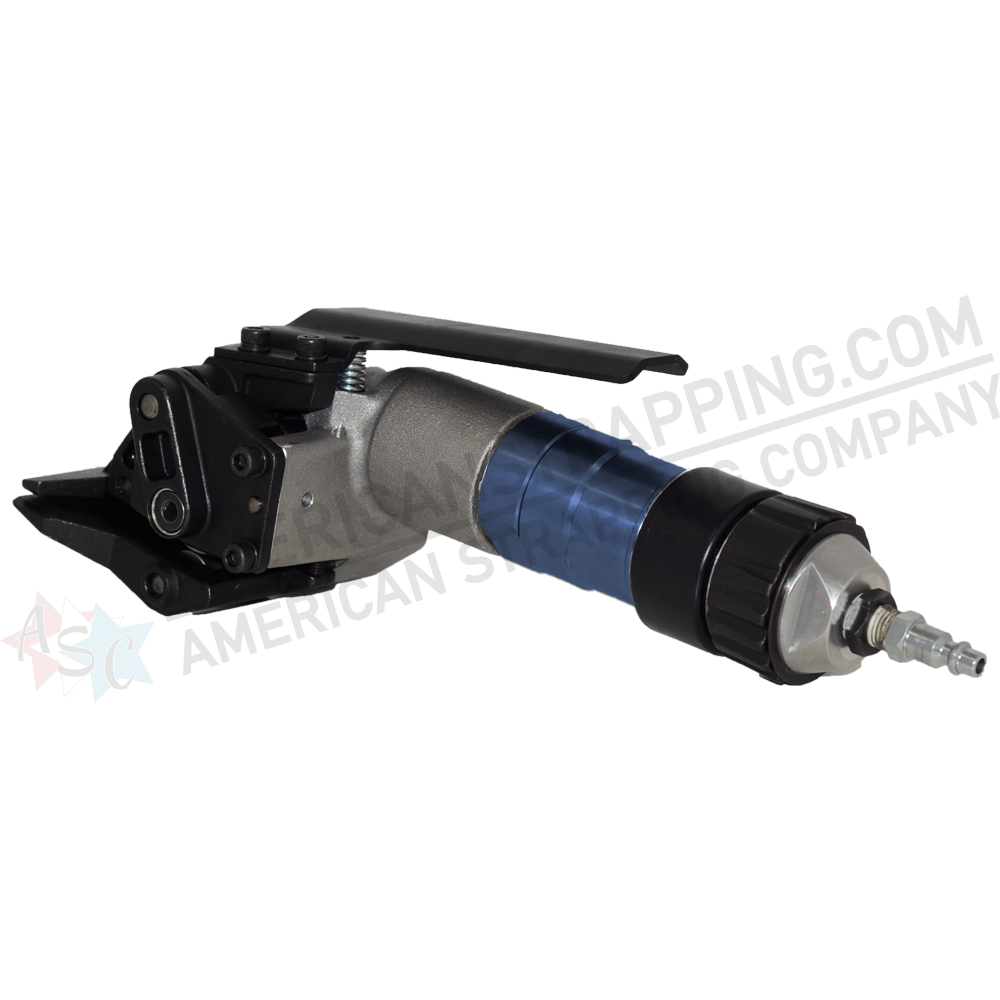

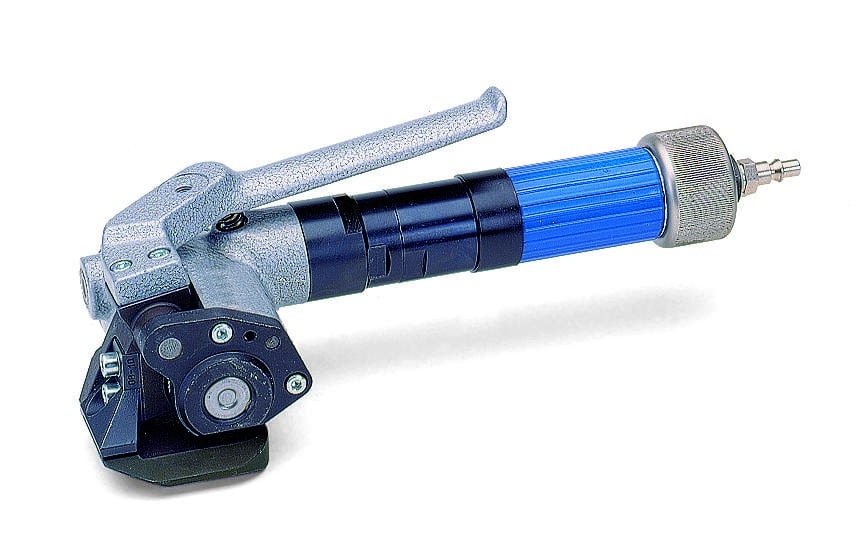

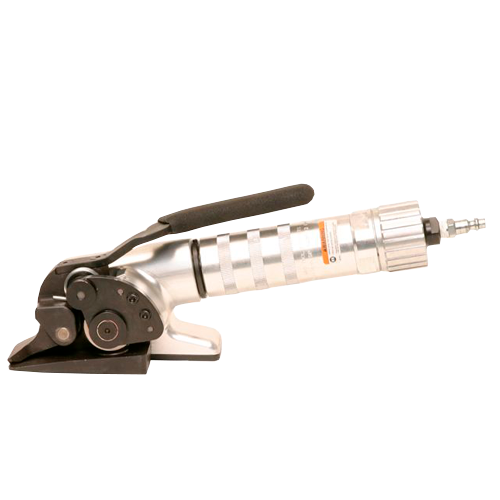

A pneumatic feedwheel push-type tensioner is used for round or irregular shaped objects. These tensioners are light enough to not need a tool balancer and as a result are highly mobile and easy to carry.
Pneumatic tensioners are often used along with pneumatic sealers. While efficient and fast, they requires airlines.
Part Number | Strap Width | Strap Thickness | Tension | More Info | |
|---|---|---|---|---|---|
 | ASCSTTR19/32 RECOMMENDED TOOL | 3/4" (19 mm) - 1-1/4" (32 mm) | .023" (0.6 mm) - .044" (1.12 mm) | Up to 2,023 lbs (920 kg) | |
 | 3/4" (19mm) - 2" (50mm) | .020" (0.51mm) - .044" (1.12mm) | Up to 1600 lbs (725 kg) | ||
 | 3/4" (19mm) up to 2" (50mm) | .020"( .51mm) to .044"(1.12mm) | Up to 2000 lbs (907 kg) |
These tools are a part of a 2 tool system and require the use of a tensioner.
These tools apply an up notch type joint to the seal and strap. They are used on high volume production and can be used in awkward positions.
These tools can be handled with a single hand and are easy to carry. With one pull on the switch, the sealers apply the notch to the seals in an efficient matter.
These tools are only capable of applying notches to the seals on the strapping, so to reduce the workload of using multiple tools, please consider one of our combination tools that function as tensioner, sealer, and cutter all in one, like the ASCPNSTSR-2B or the ASCPHDC114.
Part Number | Strap Width | Strap Thickness | Joint Type | More Info | |
|---|---|---|---|---|---|
 | ASCSTPDN SERIES RECOMMENDED TOOL | 3/4" (19 mm) - 1-1/4" (32 mm) | .023" (0.6 mm) - .043" (1.1 mm) .024" (0.61mm) - .035" (0.9 mm) | Double Up Notch | |
 | 3/4"(19mm) - 1-1/4" (32mm) | .024" (.61mm) to .035"(.90mm) | Single Up Notch | ||
 | 3/4” (19mm) - 1-1/4” (32mm) | .024” (0.61mm) - .031” (0.79mm) | Single Up Notch |
These tools are a part of a 2 tool system and require the use of a tensioner.
These tools apply a crimp type joint to the seal & strap. They are used on high volume production and can be used in awkward positions.
These tools feature pistol grips that are lightweight and can be used one handed while other diaphragm type tools require the use of both hands and are better suited for heavy duty applications.
These tools are only capable of sealing straps, so to reduce the workload of using multiple tools, please consider one of our combination tools that function as a tensioner, sealer, and cutter all in one, like the ASCPNSTSR-2B or the ASCPHDC114
Part Number | Strap Width | Strap Thickness | Joint Type | More Info | |
|---|---|---|---|---|---|
 | 1-1/4” (32mm) | .040” (1.1mm) - .050” (1.27mm) | Double Crimp | ||
 | 2” (51mm) | .044” (1.12mm) - .050” (1.27mm) | Single Crimp |
These medium duty pneumatic push-type tools combine the functions of tensioning, sealing, and cutting. They are used on round or irregular shaped objects.
These tools are standards in the steel industry. For their size and weight, it is strongly recommended that you use a tool balancer.
These are popular because pressing one button tensions, seals, and cuts in a matter of seconds.
Part Number | Strap Width | Strap Thickness | Tension | More Info | |
|---|---|---|---|---|---|
 | ASC-PNST SERIES RECOMMENDED TOOL | 3/8” (10mm) - 3/4” (19 mm) | Regular Duty: .017" (0.4mm) - .030" (0.8mm) High Tensile:.017" (0.4mm) - .025" (0.63mm) | Up to 1012 lbs. (460 kg) | |
 | 1/2” (12mm) - 3/4” (19mm) | .017” (0.43mm) - - .025” (0.64mm) | Up to 1000 lbs (454 kg) |
These heavy duty pneumatic push-type tools combine the functions of tensioning, sealing, and cutting. They are used on round or irregular shaped objects.
These tools are standards in the steel industry. For their size and weight, it is strongly recommended that you use a tool balancer.
These are popular because pressing one button tensions, seals, and cuts in a matter of seconds.
Part Number | Strap Width | Strap Thickness | Tension | More Info | |
|---|---|---|---|---|---|
 | ASC-STS32PLUS4 HIGHLY RECOMMENDED TOOL | 1-1/4" (32 mm) | .023" (0.6 mm) - .039" (1 mm) max .031" (0.8 mm) at 65 psi (4.5 bar) / max .035" (0.9 mm) at 91 psi (6.3 bar) | Up to 2,023 lbs (920 kg) | |
 | ASC-PNSTSR-2B SERIES RECOMMENDED TOOL | 3/4" (19mm) - 1-1/4" (32mm) | .024" (0.61 mm) - .031" (0.8 mm) | Up to 2030 lbs (920 kg) | |
 | 34” (19mm) - 1-1/4” (32mm) | .024” (0.61mm) - .044” (1.12mm) | Up to 1600 lbs (725 kg) | ||
 | 1-1/4" (32mm) | .024"(.61mm) to .035"(.90mm) | Up to 2000 lbs (907 kg) |
Part Number | Strap Width | Strap Thickness | Tension | More Info | |
|---|---|---|---|---|---|
 | ASC-PNINCA-HT SERIES RECOMMENDED TOOL | 1/2" (13mm) - 3/4" (19mm) | .015" (0.4 mm) to .025" (0.635mm) (RD) .020" (0.51 mm) to .025" (0.635mm) (HT) | Up to 1235 lbs (560 kg) |
These items are optional; however, make using Tools easier and more accessible.
Part Number | DESCRIPTION | ||||
|---|---|---|---|---|---|
 | Tool Balancers suspend tools in the air to protect and position the tools for easy access when not in use. | ||||
